Speakers for Harley-Davidson® Baglid / Saddlebag

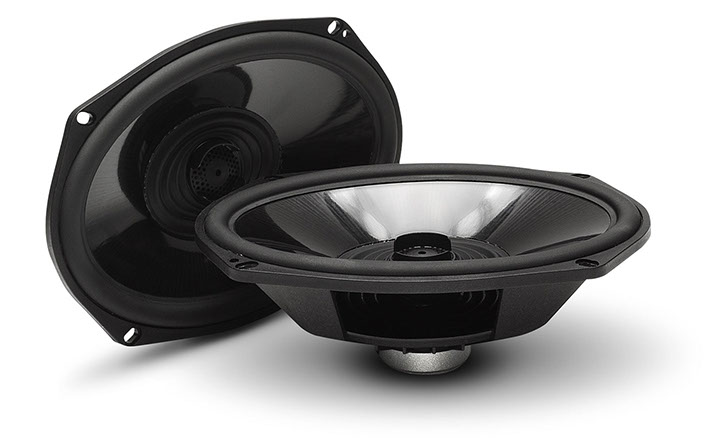

TMS69

The TMS69 is a full range coaxial speaker designed to fit baglid speaker locations made for 15 x 23 cm (6 x 9") size speakers on motorcycles. It features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25 mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly.

Features

  • Element Ready design
  • Neodymium Tweeter with Integrated Phase Plug & ASA Grill
  • Ultra‐Efficient Proprietary Film Dome Tweeter
  • Carbon‐Fiber Re‐Inforced Polypropylene Cone
  • Santoprene VAST Surround
  • Santoprene Front Isolation Spider
  • Poly‐Cotton Spider
  • High Power 35mm Voice‐Coil
  • Ultra‐Efficient Neodymium Ring Magnet Motor
  • Ultra‐High Temperature Glass Re‐Inforced Polymer Frame
  • Integrated Spade Terminals
  • Integrated Crossover with High Power Polyester Capacitor
  • Low Profile Coaxial Tweeter Design
  • Discreet Tweeter Wire

Specifications

15 x 23 cm (6 x 9") 2-Way Coaxial Speakers

with 25 mm (1") Film Dome Neodymium Tweeter

100 Watts RMS

200 Watts Max.

Impedance 4 Ω

Frequency Response 56 Hz - 20 kHz

Crossover High-Pass 6dB/Octave

EUR 329,00

Manufacturer's suggested retail price. Technical changes and mistakes reserved.
