Speakers for Harley-Davidson® Baglid / Saddlebag (2006+)

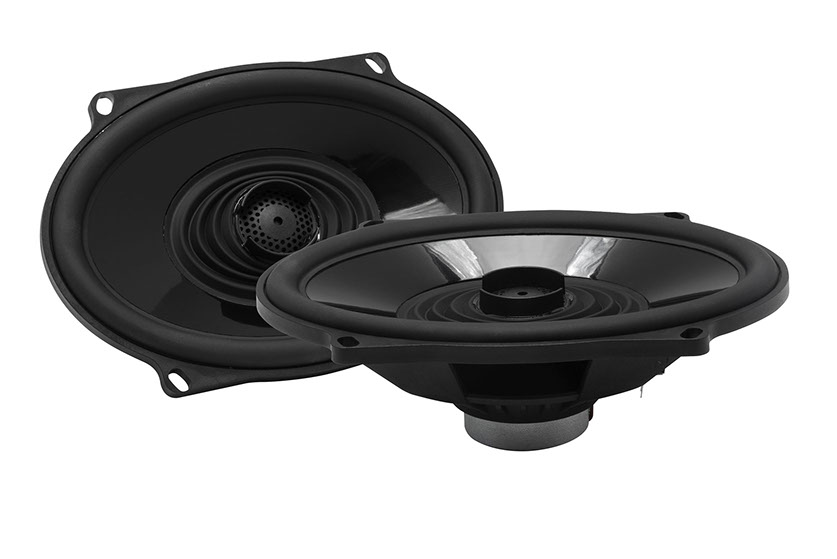

TMS57

The TMS57 full range coaxial speaker is designed to replace existing 13 x 18 cm (5 x 7") speakers in factory equipped Harley-Davidson® BOOM!™ Audio and BOOM!™ Audio Stage-1 baglids. It features a Neodymium motor structure driving a reinforced polypropylene cone with Santoprene surround. Highs are produced by an ultra-efficient 25 mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker features two types of connectors, a standard set of terminals for 2013 and older generation motorcycles, and a new Deutsch style connector for 2014 and newer.

Features

Element Ready design
Neodymium Tweeter with Integrated Phase Plug & ASA Grill
Ultra‐Efficient Proprietary Film Dome Tweeter
Carbon‐Fiber Re‐Inforced Polypropylene Cone
Santoprene VAST Surround
Santoprene Front Isolation Spider
Poly‐Cotton Spider
High Power 35mm Voice‐Coil
Ultra‐Efficient Neodymium Ring Magnet Motor
Ultra‐High Temperature Glass Re‐Inforced Polymer Frame
Integrated Spade Terminals
Integrated Crossover with High Power Polyester Capacitor
Low Profile Coaxial Tweeter Design
Discreet Tweeter Wire

Factory H-D® connector for plug-n-play operation

Specifications

13 x 18 cm (5 x 7") 2-Way Coaxial Speakers

with 25 mm (1") Film Dome Neodymium Tweeter

100 Watts RMS

200 Watts Max.

Impedance 4 Ω

Frequency Response 61 Hz - 20 kHz

Crossover High-Pass 6dB/Octave

Mounting depth 55 mm
