Speakers for Harley-Davidson® Tour-Pak® (1998-2013)

TMS5

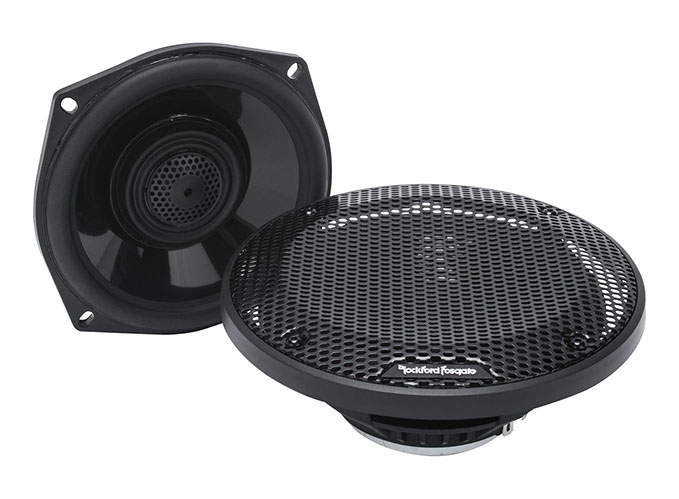

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson® motorcycles in the Tour-Pak® locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors. It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25 mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds. It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Features

  • Element Ready design
  • Neodymium Tweeter with Integrated Phase Plug & ASA Grill
  • Ultra‐Efficient Proprietary Film Dome Tweeter
  • Carbon‐Fiber Re‐Inforced Polypropylene Cone
  • Santoprene VAST Surround
  • Santoprene Front Isolation Spider
  • Poly‐Cotton Spider
  • High Power 35mm Voice‐Coil
  • Ultra‐Efficient Neodymium Ring Magnet Motor
  • Ultra‐High Temperature Glass Re‐Inforced Polymer Frame
  • Integrated Spade Terminals
  • Integrated Crossover with High Power Polyester Capacitor
  • Low Profile Coaxial Tweeter Design
  • Discreet Tweeter Wire
  • Designed for 1998‐2013 Harley-Davidson® Rear Tour-Pak® Locations*



* Installation on CVO™ or Screaming Eagle models are not plug-n-play and will require modification

Specifications

13 cm (5.25") 2-Way Coaxial Speakers

with 25 mm (1") Film Dome Neodymium Tweeter

65 Watts RMS

130 Watts Max.

Impedance 4 Ω

Frequency Response 64 Hz - 20 kHz

Crossover High-Pass 6dB/Octave

Mounting depth 52 mm

EUR 329,00

Manufacturer's suggested retail price. Technical changes and mistakes reserved.
