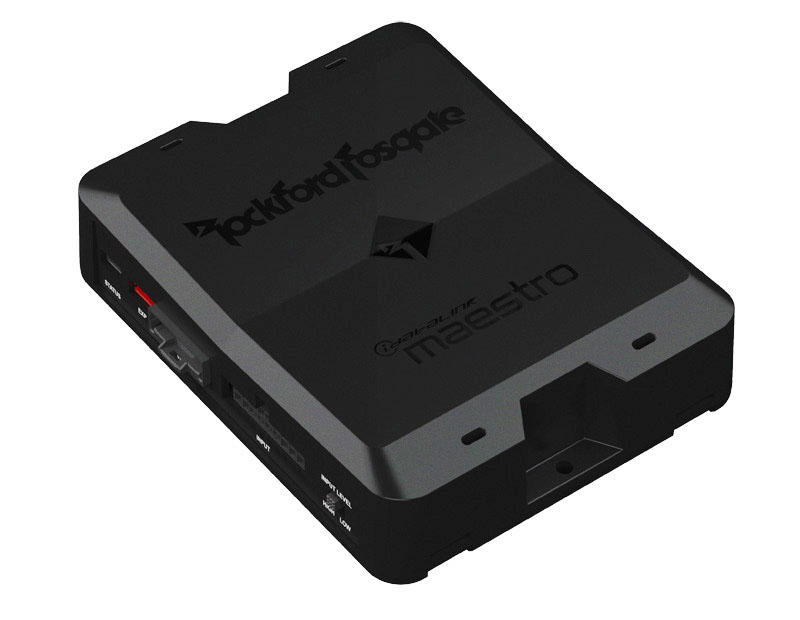

DSR1 Signal Processor

DSR1

Co-developed with ADS, the DSR1 combines a full-featured 3Sixty digital signal processor with a flashable iDatalink Maestro integration module. The DSR1 can be used out-of-the-box with high or low level input, or with a quick flash download to add vehicle specific firmware to enable integration without the loss of factory equipped controls and features. Once connected, complete control of the sound profile can be adjusted using Rockford Fosgate’s proprietary PerfectTune app via mobile devices.

Features

  • 4-Channel Balanced Differential RCA Inputs
  • 4-Channel High Level Inputs with Signal Sense Turn On
  • 18 Pin Analog Input Harness
  • 16 Pin Analog Output Harness
  • Micro USB Setup/Update Port
  • Designed for use with Select Maestro Vehicle T-Harnesse
  • Optional PLC2 Level Controller with Assignable Functions
  • Adjustable crossovers with selectable slope
  • Up 10msec of delay on each channel for Time Alignment
  • Bluetooth 4.0 Connectivity for convenient setup
  • Interactive Tuning Interface Controlled via Android/ iOS App

Specifications

8-Channel Interactive Signal Processor w/

Integrated iDatalink DSP Maestro Module

245 Bands of Equalization for Aftermarket Tuning

Auxiliary RCA and SPDIF Coaxial Inputs

Dimensions 103 x 32 x 130 mm
