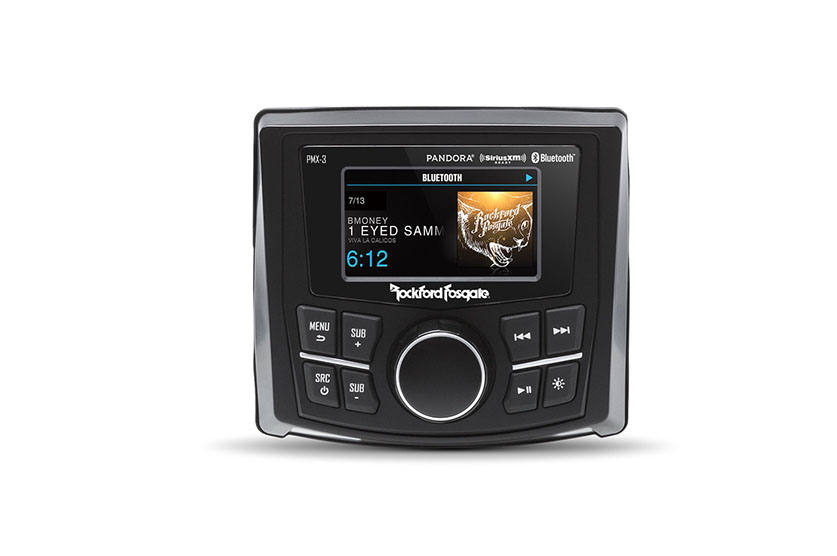

Digital Media Receiver with 2.7"/6,85 cm Display

PMX-3

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth® audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4 x 50 watts internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output. Android devices equipped with limited functionality. Please refer to owners manual for details.

Features

  • SiriusXM-Ready™ (SXV300 module)
  • Electrically Erasable Programmable Read-Only Memory
  • Integrated voltage gauge w/ low voltage alert
  • Wired remote ready (up to 3 remotes)
  • Front Panel Sub Control
  • Upgradeable Firmware and Bluetooth Software via USB
  • IPX6 Water Intrusion Rating
  • Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt
  • Automotive grade AM/FM Radio
  • Weatherband Radio digital tuner
  • Supports Radio Data System (RDS)
  • Licensed Pandora control
  • Bluetooth streaming audio (A2DP) protocol version 1.4
  • Rear USB With 1A Charging Only
  • Rear AUX-In (L/R)
  • DSP for each zone with 7 Band EQ + Punch EQ
  • Selectable high/low pass crossover for each zone
  • Selectable crossover slopes of 12dB or 24 dB for each zone
  • Adjustable input gain for each source
  • Waterproof Rotary Encoder Volume Control
  • Tactile convex buttons for easy identification
  • White LED Button Illumination
  • Wired and front panel illumination control
  • Wet Bonded Display
  • Epoxy coated circuit board for water resistance
  • External trigger input to activate reverse camera mode
  • Direct composite video input connection
  • Day/Night display mode

Specifications

2.7"/6,85 cm Color TFT

25 W x 4 @ 4Ω RMS

50 W x 4 @ 2Ω Peak

Frequency Response 20 Hz - 20 kHz

AM / FM / WB Tuner

Presets 18 FM / 12 AM / 6 WB

FM Frequency Range 87.5 - 107.9 MHz

AM Frequency Range 530 kHz - 1710 kHz

Width: 11,5 cm

Height: 10,6 cm

Depth: 7,4 cm

Face Depth: 3,8 cm

Mounting Hole: 7,7 cm

EUR 479,00

Manufacturer's suggested retail price. Technical changes and mistakes reserved.
